- Designed for large-scale production: handles rail discs up to 200 kg.

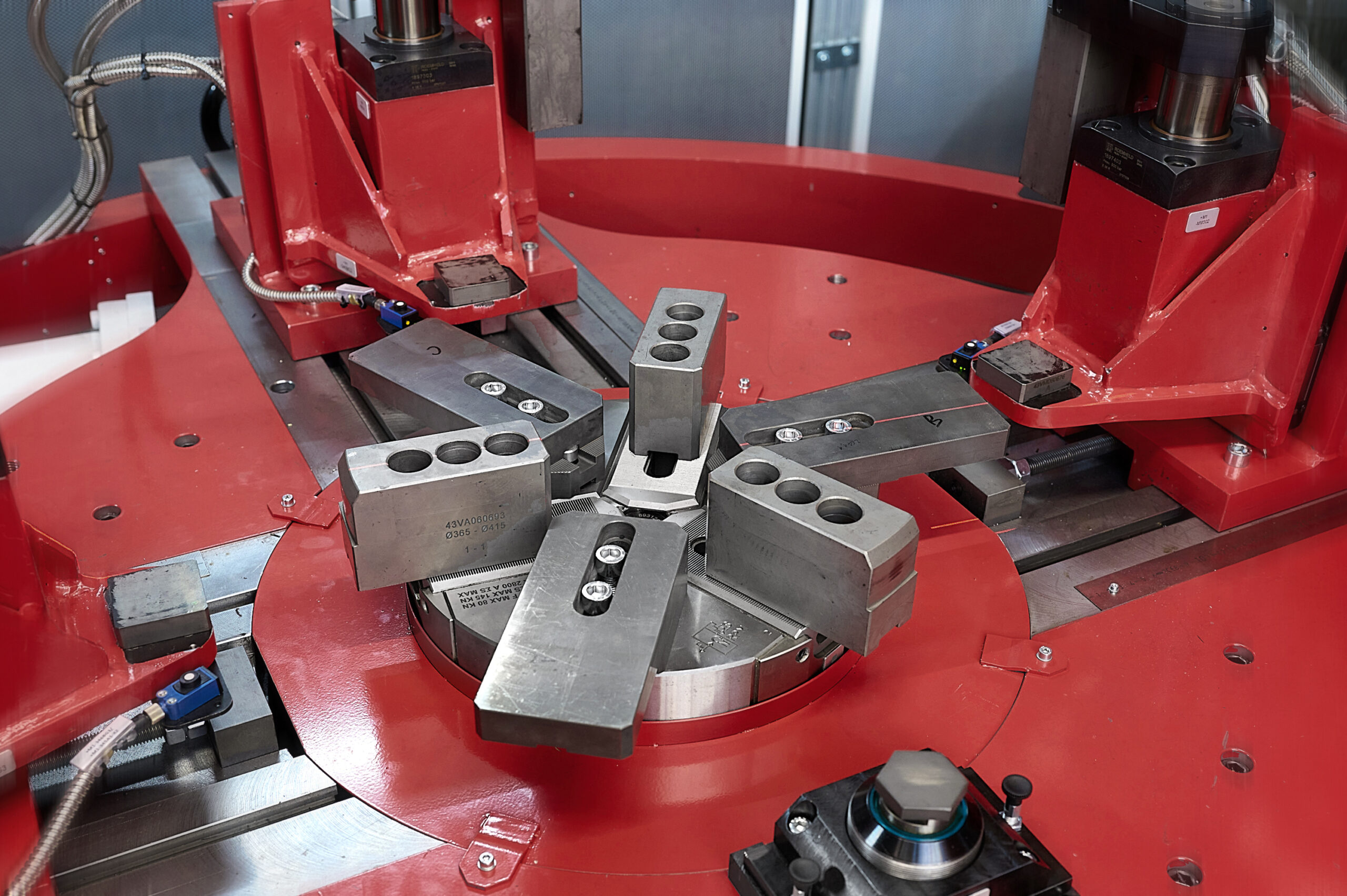

- Versatile axial and radial hydraulic clamping system.
- High rigidity rotary table with machine tool cutting speed for high volume production.
- Automatic chip vacuum system for a clean and safe working environment.

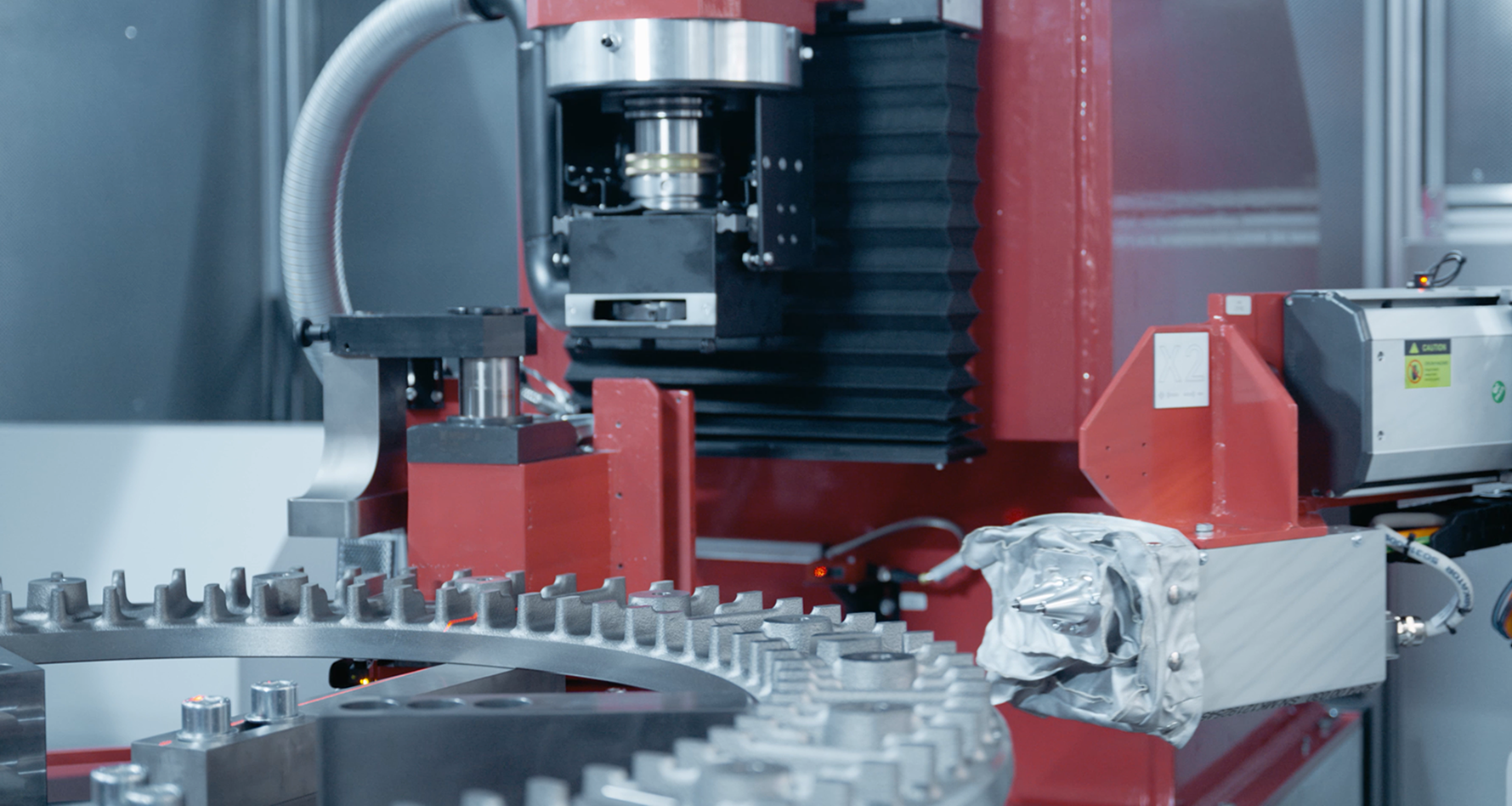

- Automatic imbalance correction by milling, dedicated programs for discs with high imbalances, and possibility of contiguous correction arcs.
- The machine integrates an automatic cutter wear control ensuring balanced quality and process safety at all times.
- Machine prepared for connection with supervisory and production management systems. It integrates data exchange logic with MES platforms, enabling real-time tracking and monitoring.
- Remote assistance and local support available worldwide.

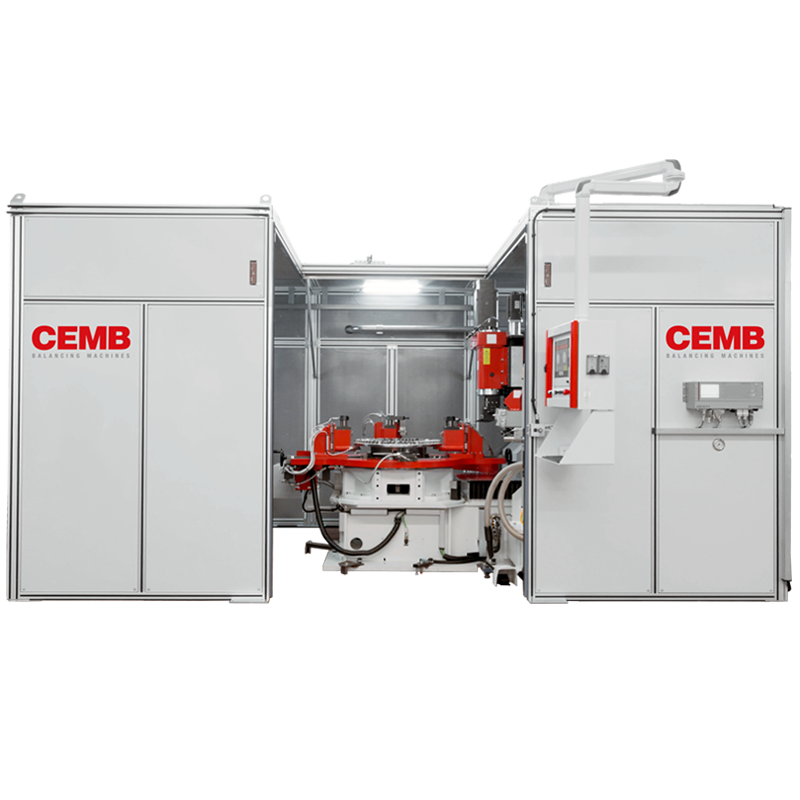

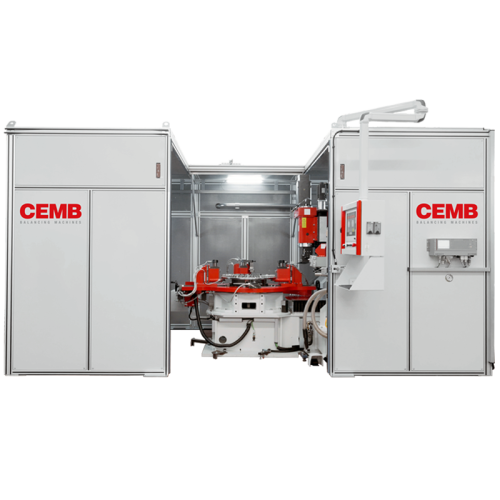

Railway brake disc balancer
The CEMB automatic balancer handles rail brake discs up to 200 kg with measurement, correction by milling and unbalance control on the same station.
Features
Technical data
| VUBK200/BD | |
|---|---|
| Maximum rotor weight (kg) | 200 |
| Friction disk height (mm) | 10-80 |
| Rotor diameter (mm) | 260-1000 |
