Automatic balancer for jet engine shafts

CEMB automatic balancer for precision balancing of jet engine shafts, combining full automation, high accuracy and compliance with aerospace standards.

Features

  • Fully automatic balancing process, from imbalance detection to correction, with no need for manual intervention.

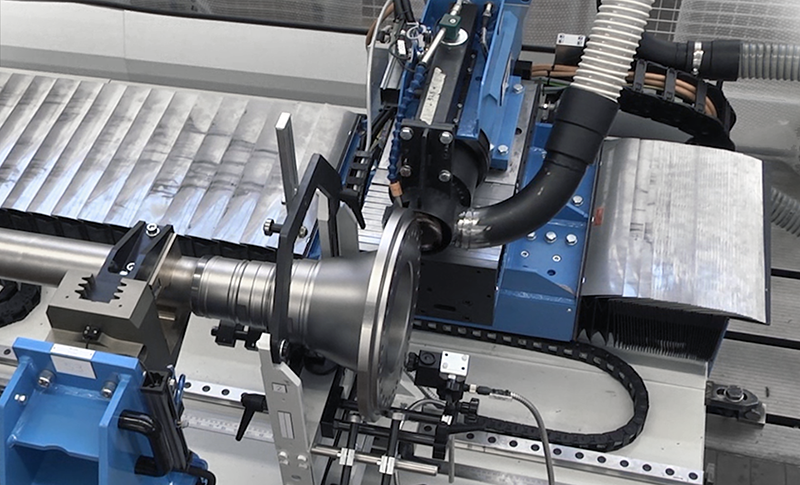

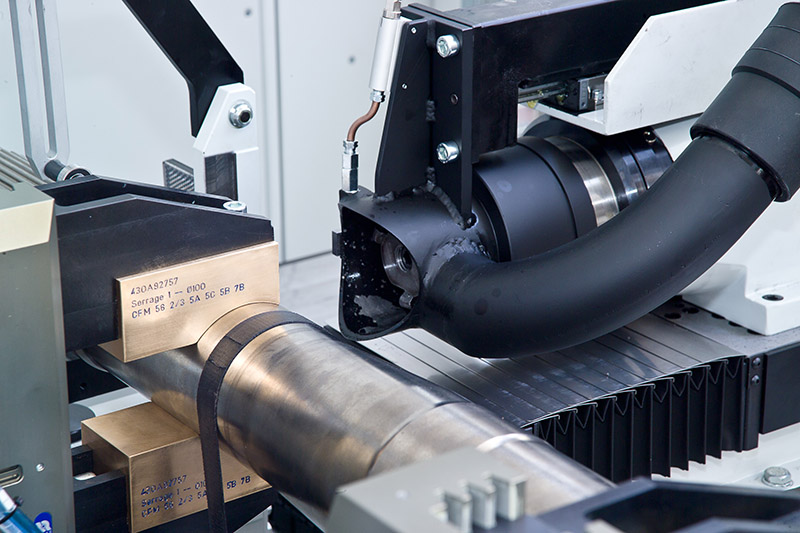

  • Correction by direct milling on superalloys, specifically designed for aerospace applications.
  • Three-plane balancing capability, critical for highly complex modern jet engine shafts.
  • High-precision design, optimized to reduce cycle times while ensuring maximum accuracy.
  • Dedicated software with customizable programs, data storage and complete process traceability.
  • Compliance with the most stringent SAE aerospace standards.
  • Integration of safety, automation, and reliability into a single robust industrial platform.

Technical data

ZBK200/TO/S/AERO
Maximum rotor weight (kg) 200
Maximum rotor diameter (mm) 500
Length of supports (mm) 3050

Options

Aero Equipment (SAE ARP4163)

Master SAE

Motorized media translation

SAE saddle bearing

Scroll to Top

Search by industry

Search by industry

Automotive

Search by industry

Complete wheels and components

Search by rotor

Search by rotor

Complete wheels and components

Search by rotor

Rotating lobes/screws

Request information

    Request information on Impeller – correction by grinding


      Aero Equipment (SAE ARP4163)

      Specific solutions such as drive shafts, support systems, and complete engine module positioning equipment. Equipment designed to meet the high technical and precision requirements of the aerospace industry.

      Master SAE

      Reference rotors for calibration and verification of balancing machines according to SAE standards.

      Motorized media translation

      System that allows motorized translation of supports on the pallet. Useful for frequent production changes and precise positioning of supports.

      SAE saddle bearing

      Special aviation rotor mounts, conforming to SAE standards, providing stability and accuracy in measuring unbalance.
