- Wide range of wheel balancers for complete car and truck wheels: measuring machine, with correction on a single station, on separate stations, and/or control.
- Possibility of horizontal or vertical correction with the application of balancing masses in two planes and a poka-yoke system.

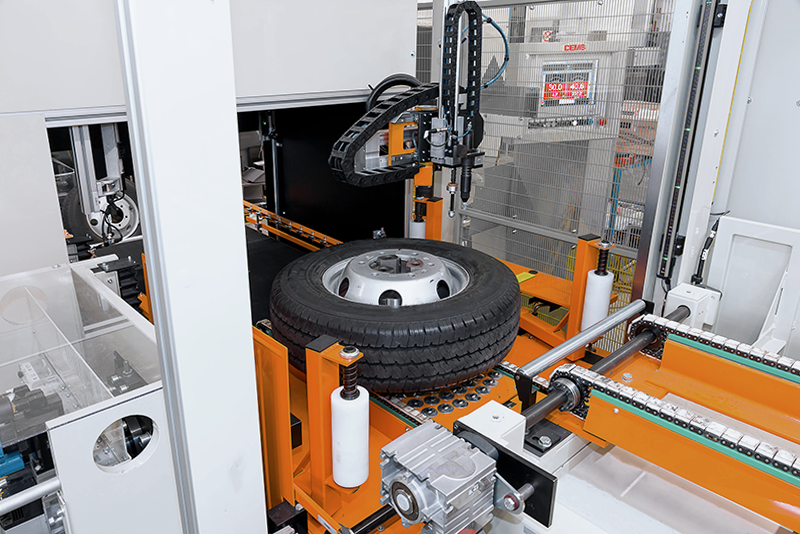

- Loading/unloading by conveyor and internal lift.
- Presence of marker identifying the angular position of the imbalance to facilitate the application of the balancing mass.

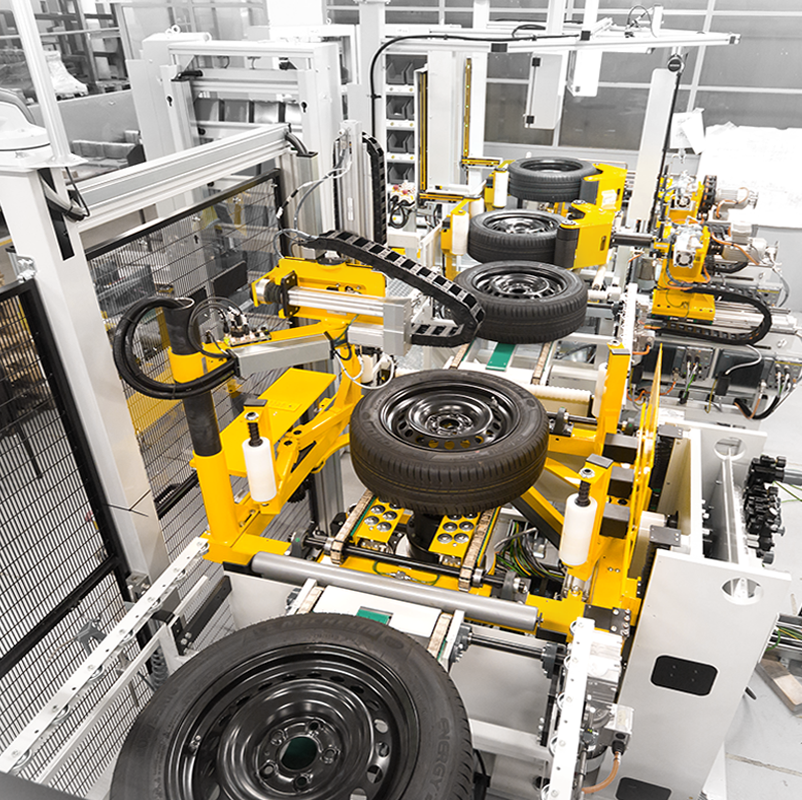

- Multi-station machine for short cycle times.
- Designed for integration into 24/7 continuous automatic production lines, ensuring high efficiency.

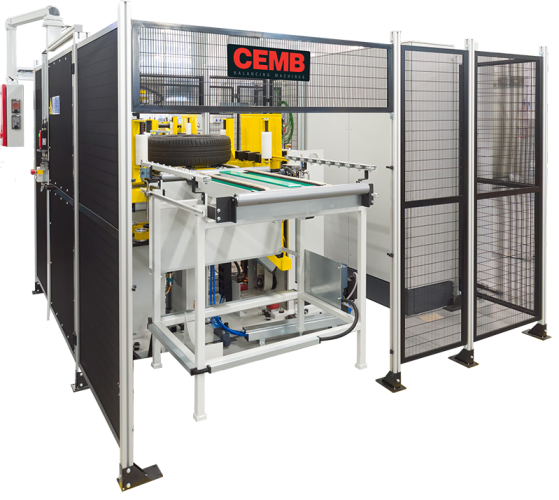

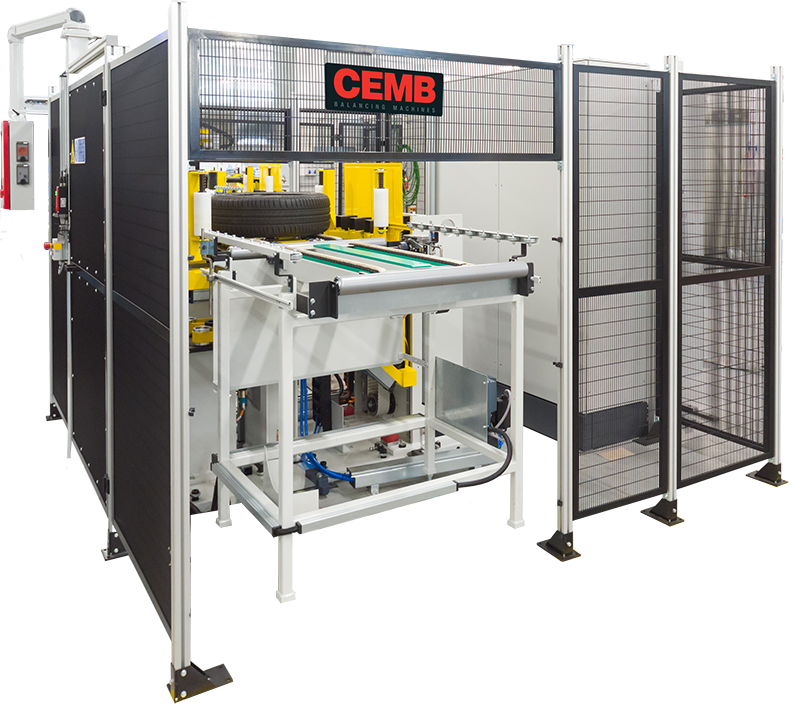

Complete wheel balancer

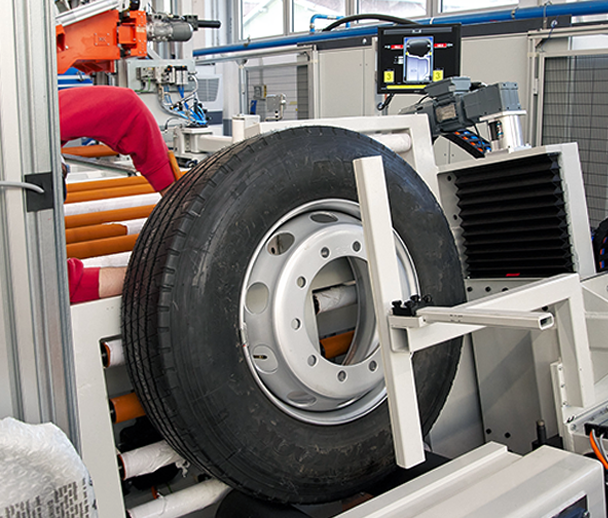

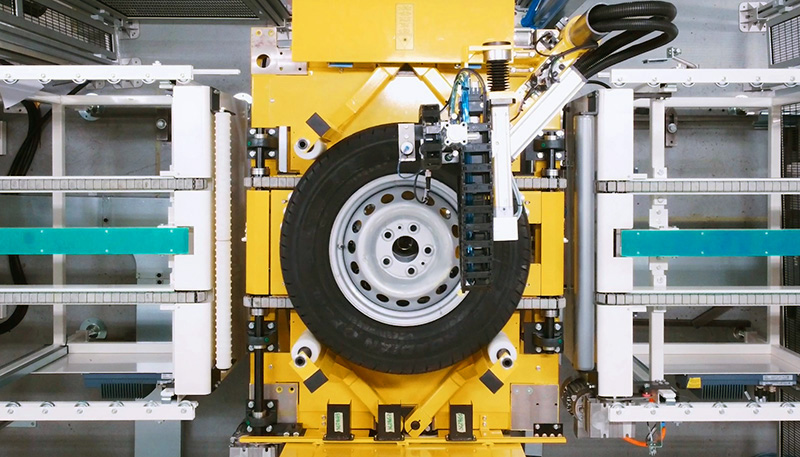

CEMB’s automatic wheel balancer handles complete wheels of cars and trucks. Unbalance correction can be done horizontally or vertically with the application of the balancing masses in two planes.
Features
Technical data
| VEB/W12 | |
|---|---|
| Clamping diameter (mm) | 50-300 |
| Rotor outer diameter (mm) | 550-1300 |
| Rotor width (mm) | 125-450 |
| Machine control | VEB/W12C |
| Horizontal correction | VEB/W12H |
| Vertical correction | VEB/W12V |
