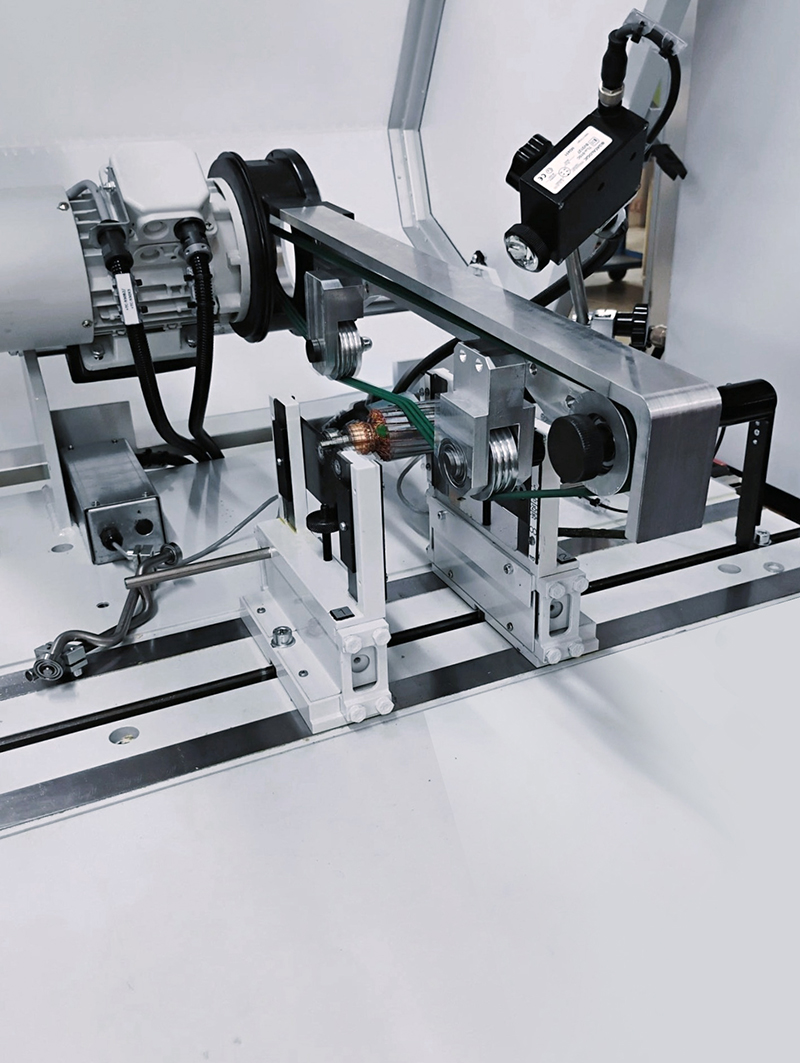

Horizontal axis balancing machines from 0.02 to 20 kg

Features

Specifications of CEMB horizontal axis balancing machines:

  • Absolute accuracy: patented unbalance detection system.
  • Quick setup: intuitive configuration without the need for complex operations.
  • Compact design: no foundation required, suitable for any environment.
  • Energy efficiency: machines designed to ensure low environmental impact.

Main applications:

  • Electric motors: induced, electrospindles and EV (electric vehicle powertrain) motors, including magnetized.
  • Mechanical components: impellers of pumps, fans, and small turbines.
  • Automotive: maintenance, small series production and audit of automatic lines.
  • Laboratories: combined use with automatic machines for testing and prototyping.

Technical data

* Maximum mass for the rotor with a symmetrical weight distribution between the two pedestals, for sporadic use the reported figure may be exceeded by up to 50%.
ZB/TO2 ZB5 ZB20
Maximum rotor weight (kg) 2 5 20
Maximum rotor diameter (mm) 150 260 320
Rotor journals diameter range (mm) 5-25 5-50 5-50
Bedplate (mm) 400 520-1000 700-1000
Machine capacity 2 5 20

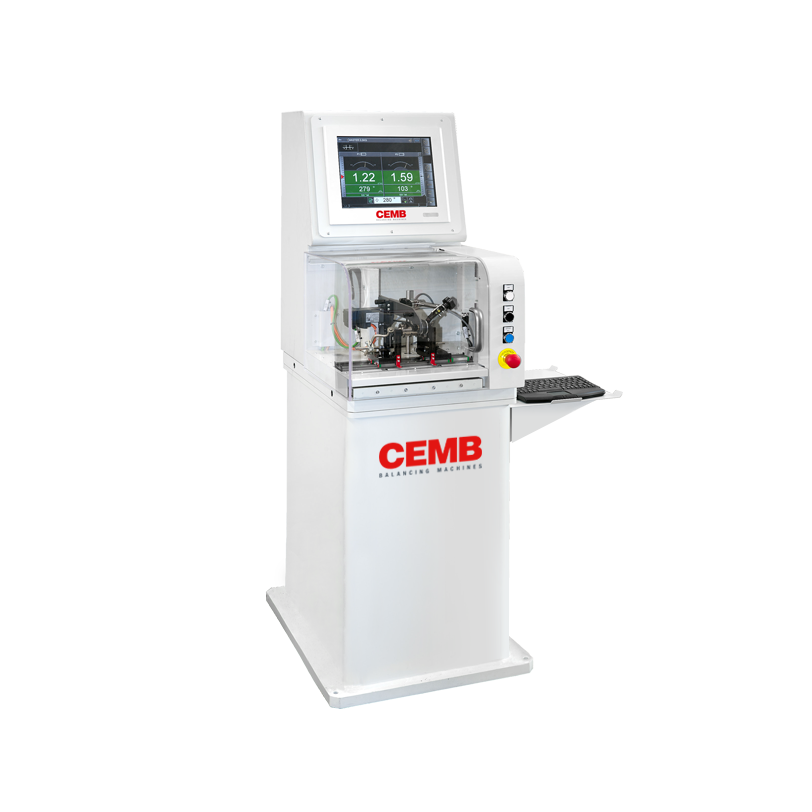

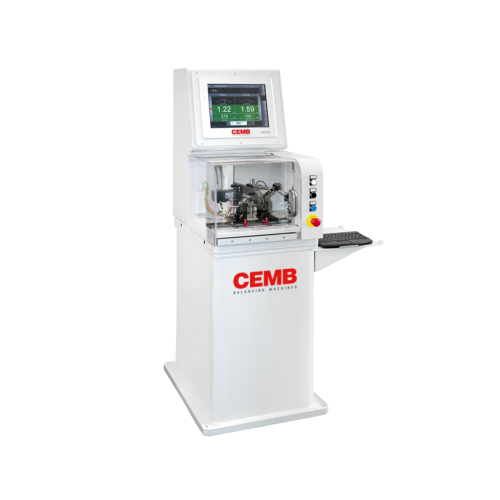

Belt drive ZBS/TO2 ZB5/TC/GV ZB20/TC/GV

Options

Additional equipment

Optional software

Rotating ISO

Magnetized rotor kit

Scroll to Top

Search by industry

Search by industry

Automotive

Search by industry

Complete wheels and components

Search by rotor

Search by rotor

Complete wheels and components

Search by rotor

Rotating lobes/screws

Request information

    Request information on Impeller – correction by grinding


      Additional equipment

      • Inverted roller equipment: constructed so that the rollers work above the rolling diameter, suitable for rotors with impellers unbalanced with respect to the shaft.
      • Cantilever fixtures: rollers mounted on spacers that allow parts without shafts, with very short shafts or large diameter tubes to be balanced.
      • V-equipment: used in specific cases where the workpiece is balanced using service bearings or to process very small diameters.
      • Flanged equipment: typically used to process drive shafts
      • Non-magnetic equipment: useful where the part is magnetic (example: electric motor rotors).

      Optional software

      Set of functions that allow the operator to display useful and ancillary information in addition to the classic indication of imbalance and phase.

      The best supplied are:

      • Assisted balancing tools (milling, drilling, adding counterweights)
      • Analysis tools (such as FFT or 2F program, useful for flexible rotaries)
      • statistics tool
      • traceability tool

      Rotating ISO

      Rotating in accordance with ISO standards for the management and certification of balancing processes.

      Magnetized rotor kit

      Dedicated solutions for handling and balancing magnetized rotors.
