- Vertical solution used to balance impellers of pumps (or individual stages), impellers and turbines.
- Fully automatic machine capable of performing the entire balancing cycle (measurement-correction-control) without operator assistance.

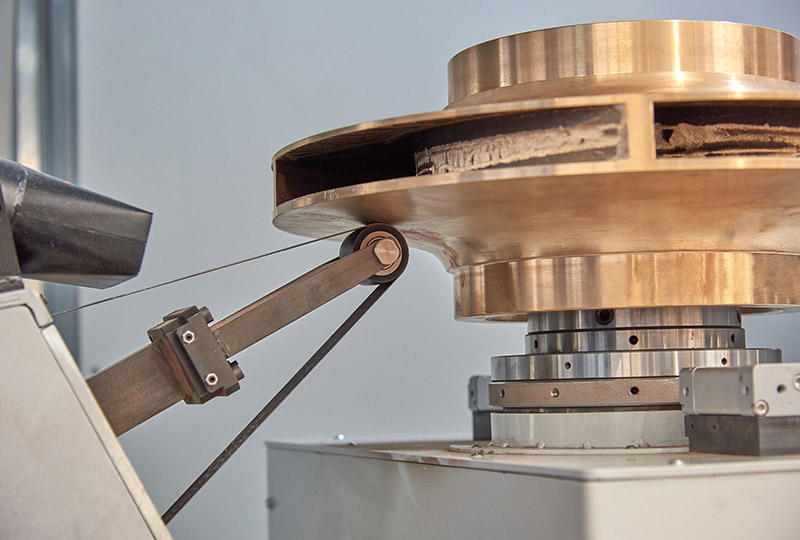

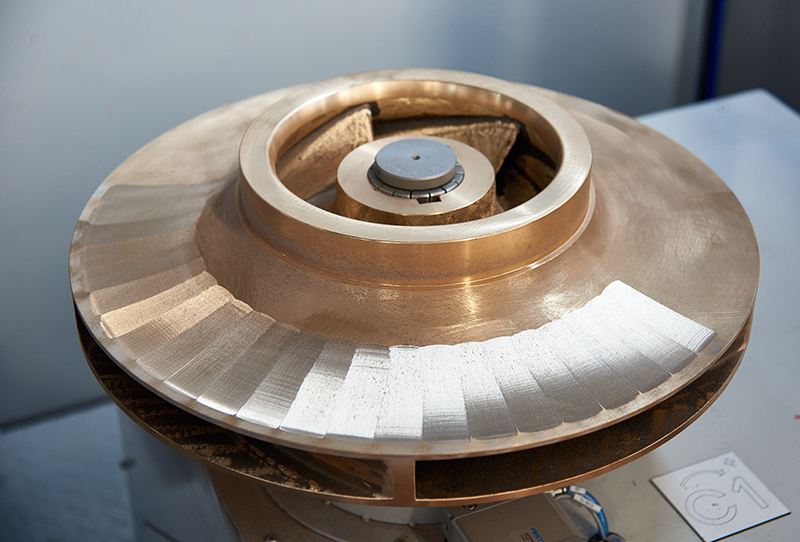

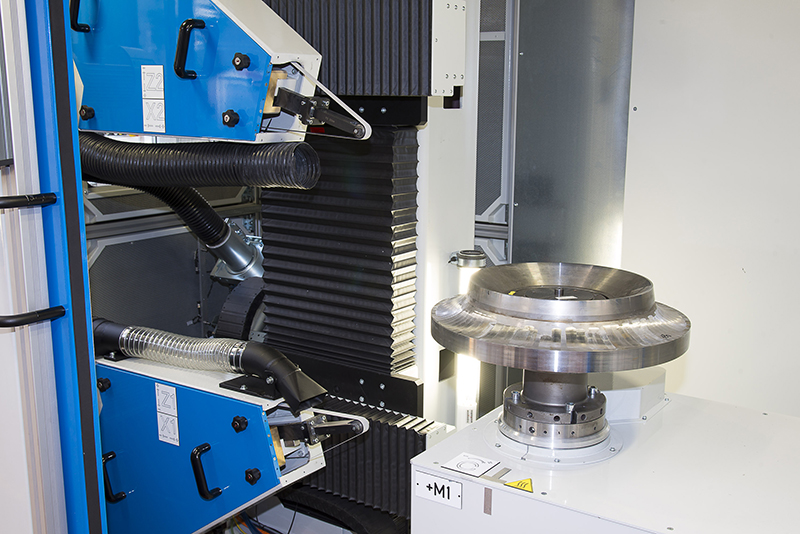

- The correction is done by one or two belt sanders that remove material from the outer surface of the parts.
- Complete with intelligent matching system to perfectly track the profile even with small or discontinuous radii.
- Blurring function to prevent stepping at the beginning and end of the correction section.
- Self-tuning removal system that adjusts cutting parameters in real time to optimize corrective power.
- Extraction of dust for greater operator safety.

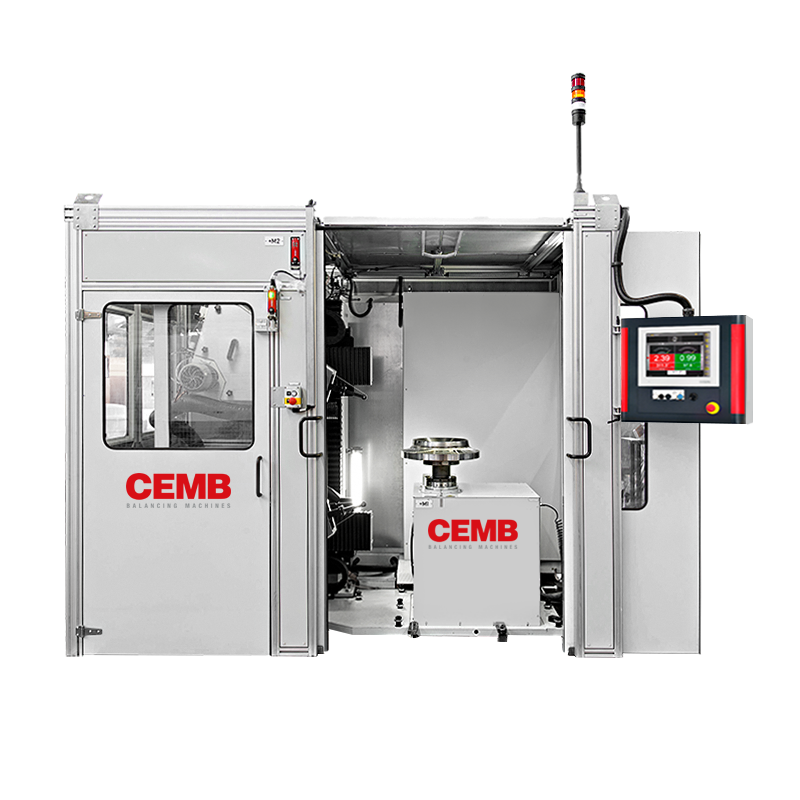

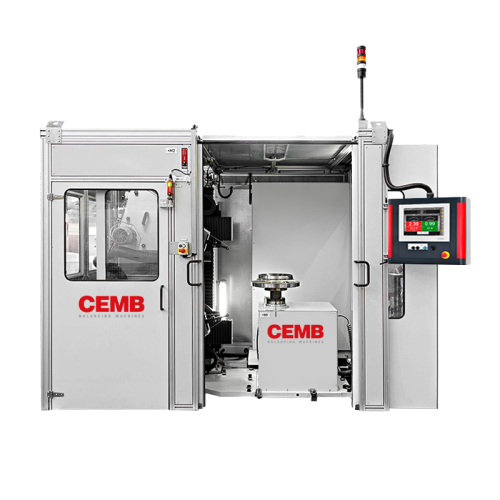

Vertical balancing machine for pumps, compressors and energy turbines

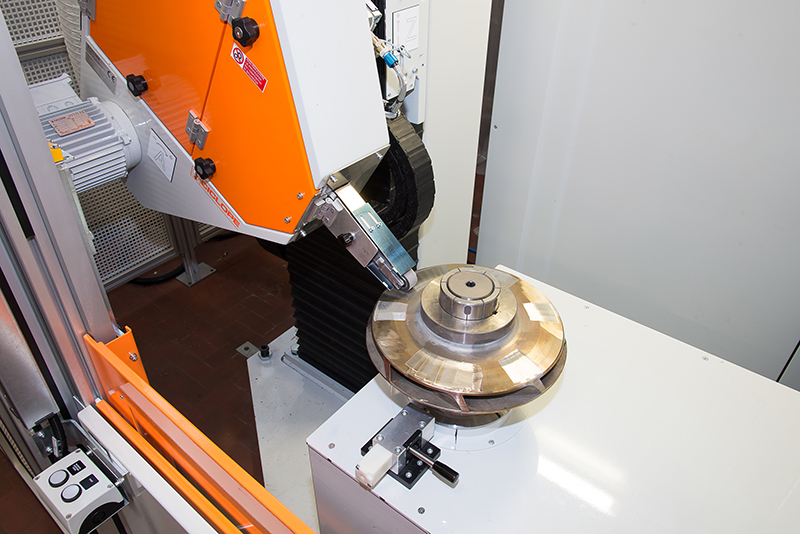

CEMB’s automatic balancer handles pump impellers, single stages, impellers, and turbines. Correction is performed with belt sanders, which remove material from the outer surfaces of parts.
Features
Technical data
| VEBK50/S | VEBK100/S | |
|---|---|---|
| Maximum rotor weight (kg) | 50 | 100 |
| Maximum rotor diameter (mm) | 430 | 1000 |
| Maximum rotor height (mm) | 200 | 300 |
| Machine capacity | 50 | 100 |
| One sanding unit | VEBK50/UL/S | VEBK100/UL/S |
| Two sanding units | VEBK50/2UL/S | VEBK100/2UL/S |
