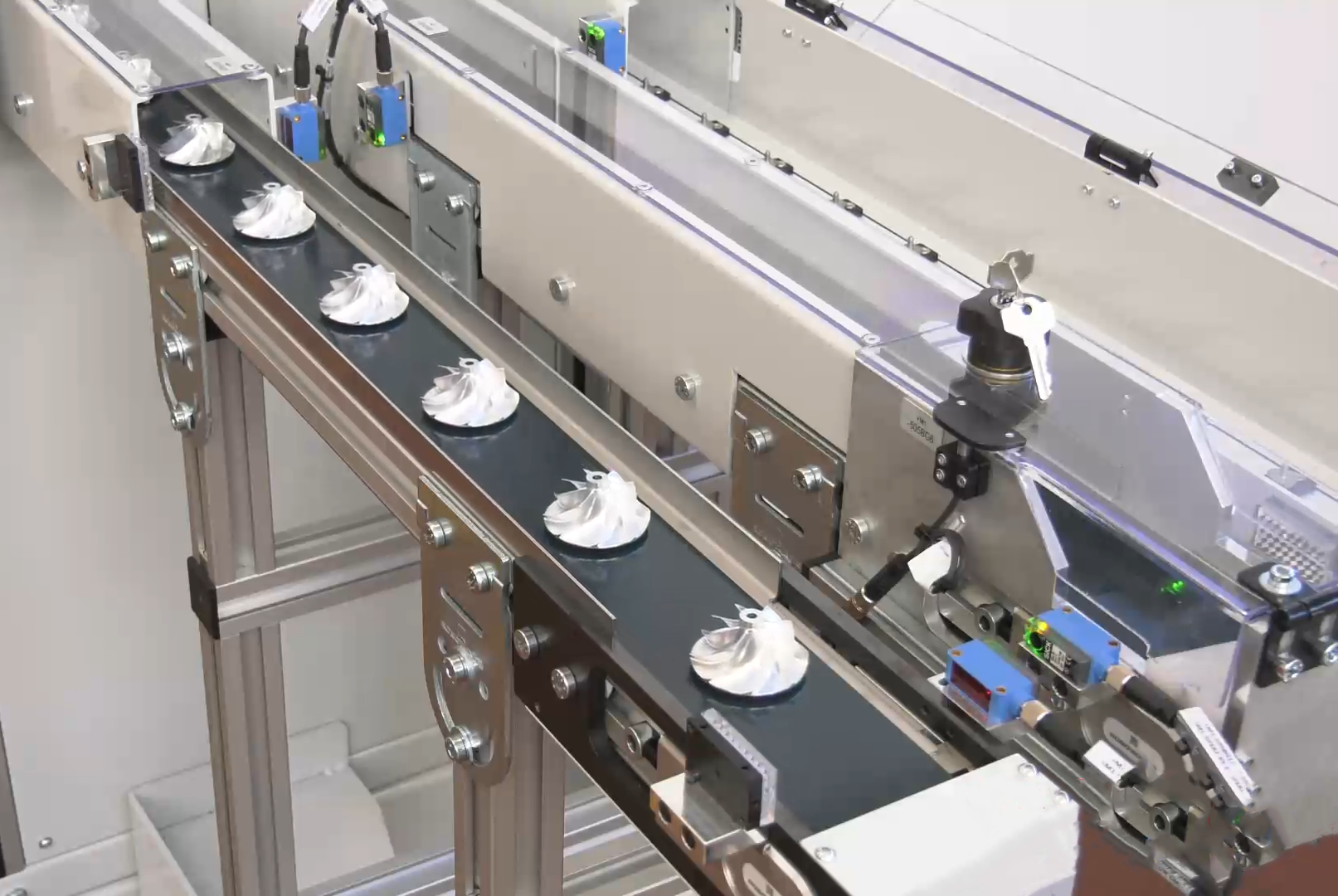

- Three loading/unloading belts: ensure continuous, smooth handling of parts throughout the operating cycle.
- Automatic data matrix code detection: enables wheel tracking and integration with supervisory systems.

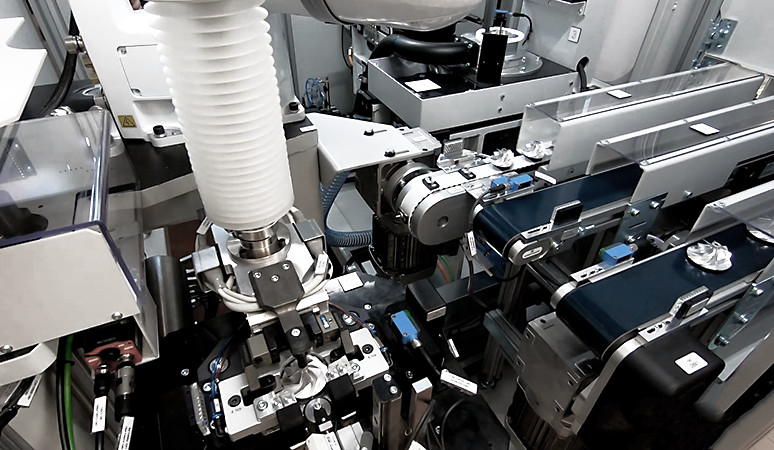

- SCARA robot for internal wheel movement: ensures fast and precise movement within the machine.

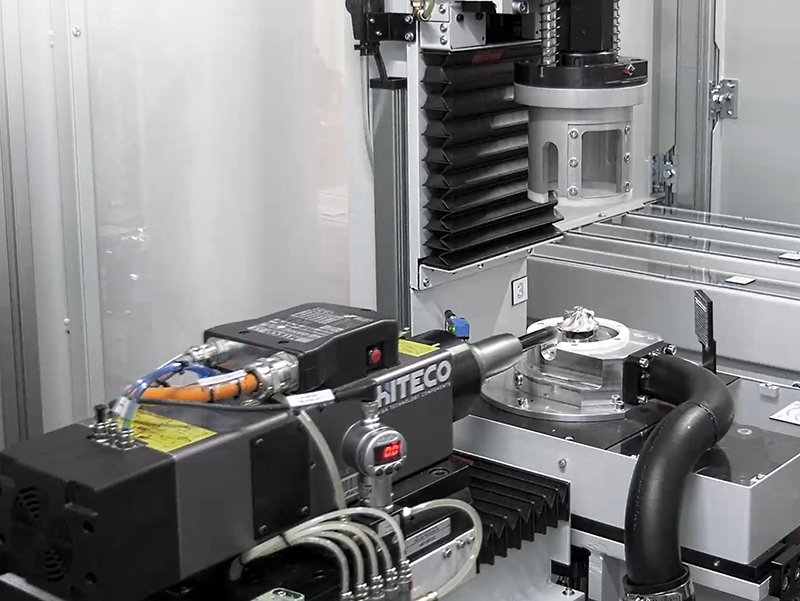

- Air-bearing measuring station: offers maximum sensitivity and accuracy in balance data collection.
- A milling station: enables precise and localized correction operations.
- Automatic chip vacuum unit: keeps the work area clean and improves operational safety.
- Customized CEMB software: developed in-house for intelligent machine management and interface with MES systems.

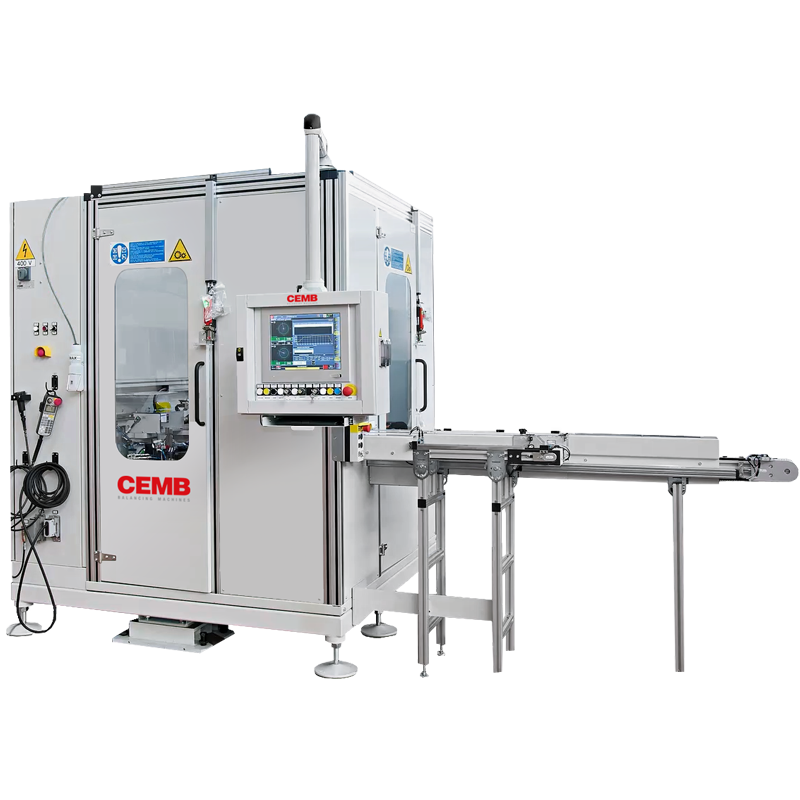

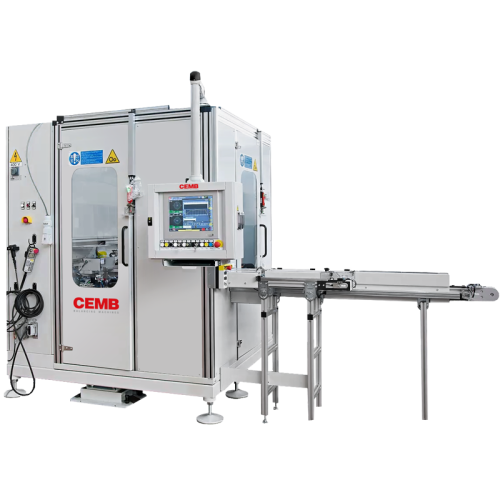

Compressor wheel
Macchina automatica per l’equilibratura di componenti di turbocompressori auto e camion. Correzione dello squilibrio tramite fresatura su nose e back face.
Features
Technical data
| CWC/A/2ST | |
|---|---|
| Maximum rotor weight (kg) | 0,4 |
| Turbine impeller diameter (mm) | 32-125 |
| Balancing speed (rpm) | 800-4000 |
