- Double high-precision unbalance measuring station for 100% quality control in extremely short cycle times.

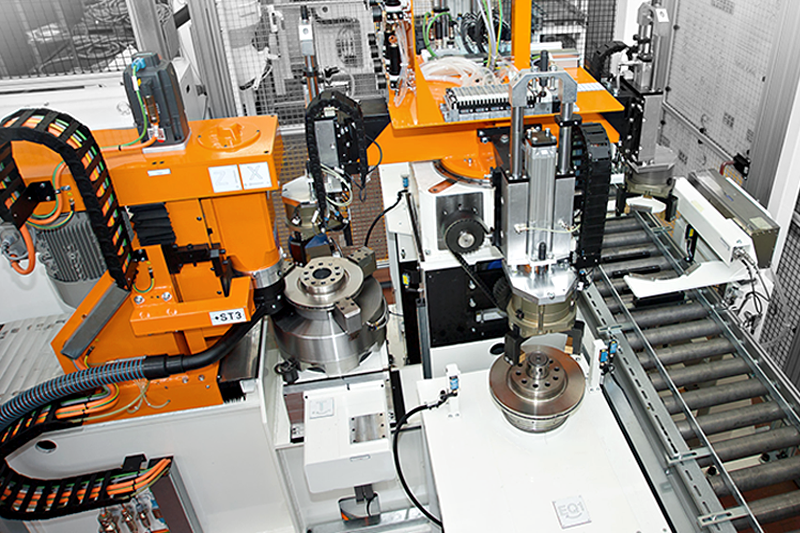

- Unbalance correction station by controlled two-axis milling for targeted removal.

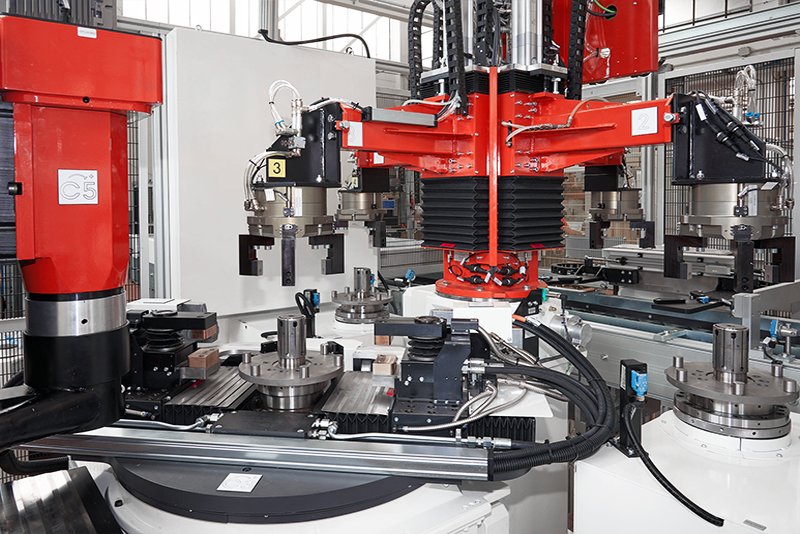

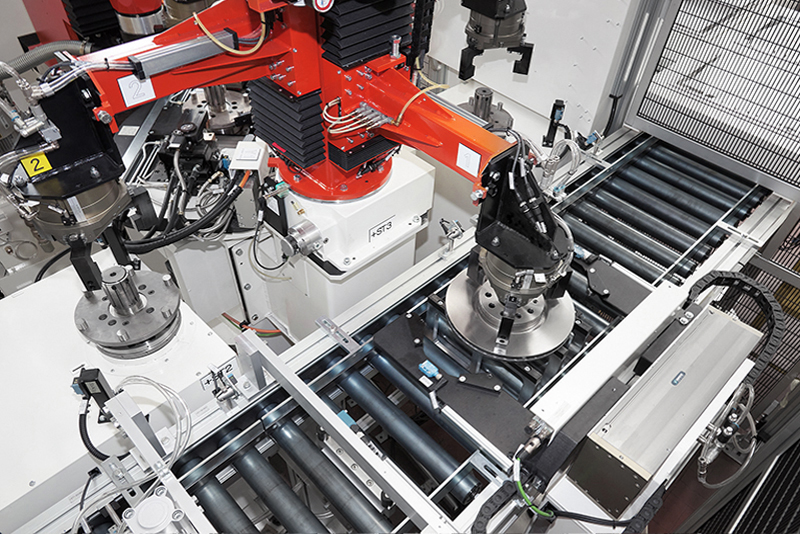

- Automatic 4-arm loader for fast and synchronized disc handling.
- Intelligent sorting system on the exit roller conveyor, with diverter for automatic separation between compliant and reject parts.

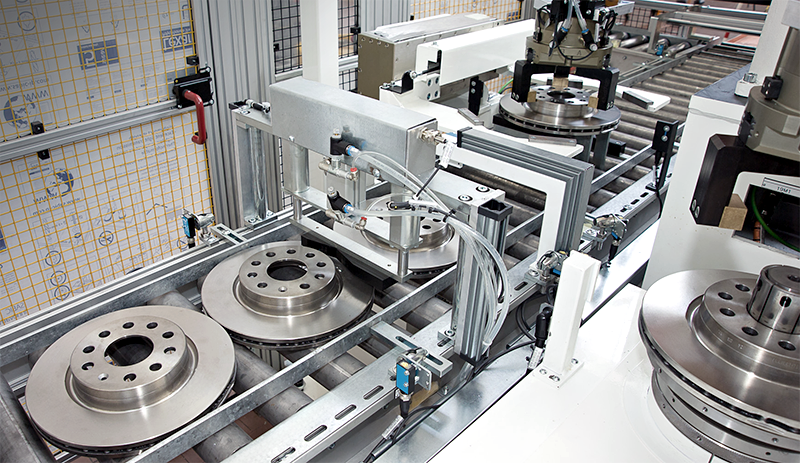

- Automated infeed roller conveyor with integrated part recognition system based on disc height and diameter reading.
- Part marking option available, for traceability and post-process management.
- Machine prepared for connection with supervisory and production management systems. It integrates data exchange logic with MES platforms, enabling real-time tracking and monitoring.
- Augmented reality remote assistance and integration with automated assembly lines for globally optimized production flow.

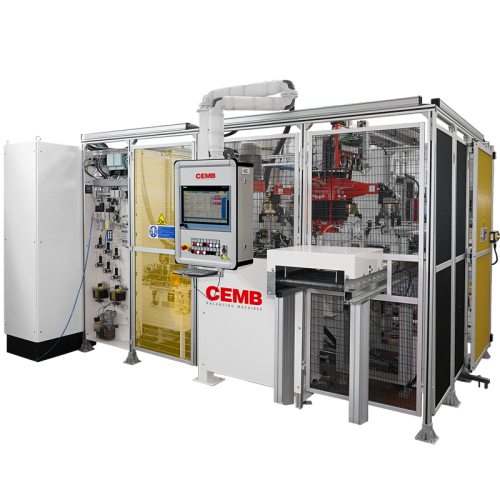

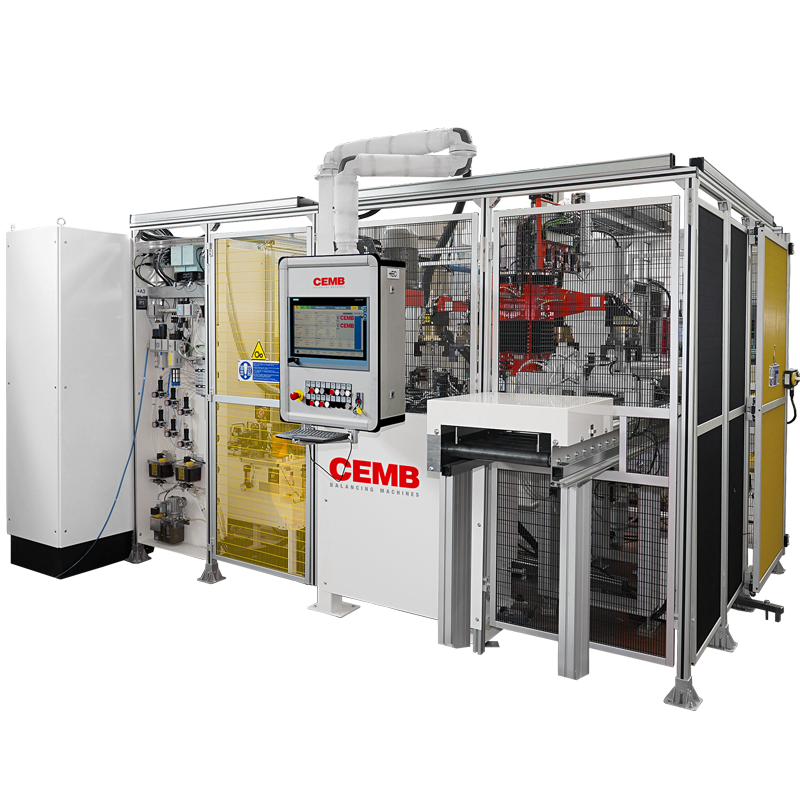

Three-station balancer for brake discs and drums
CEMB’s automatic balancing machine with three separate stations handles brake discs and drums up to 200 kg ensuring extremely short cycle times and 100% quality control.
Features
Technical data
| VUBK30/BD/3ST | VUBK40/BD/3ST | VUBK200/BD/3ST | |
|---|---|---|---|
| Maximum rotor weight (kg) | 30 | 40 | 200 |
| Brake band width (mm) | 10-45 | 10-50 | 10-80 |
| Rotor diameter (mm) | 220-440 | 260-600 | 260-1000 |
| Machine capacity | 30 | 40 | 200 |
| VUBK30/BD/3ST | VUBK40/BD/3ST | VUBK200/BD/3ST |
