- Maximum performance and low power consumption due to live-motor technology that enables superior measurement accuracy.
- Advanced versatility: balancing 1-, 2- or 3-element drive shafts with lengths up to 3 meters. Longer lengths on request.
- Automatic type change by motorized supports and automatic locking of shafts to heads
- Extremely short cycle time due to the use of live motors for high production volumes
- Communication interface for automatic loading by robot.
- Machine prepared for connection with supervisory and production management systems. It integrates data exchange logic with MES platforms, enabling real-time tracking and monitoring.

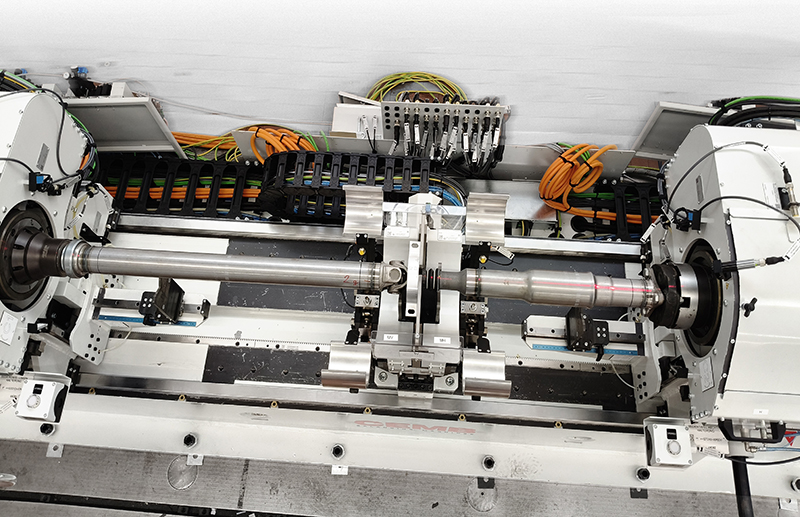

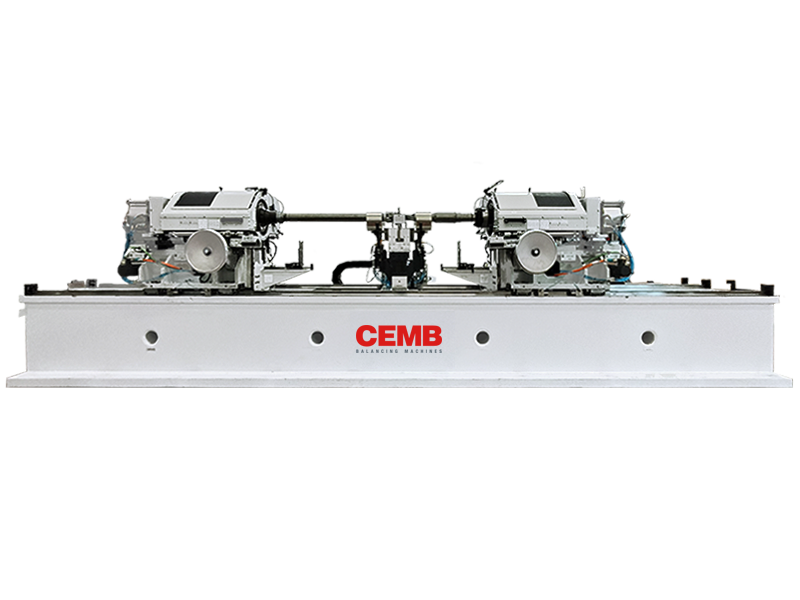

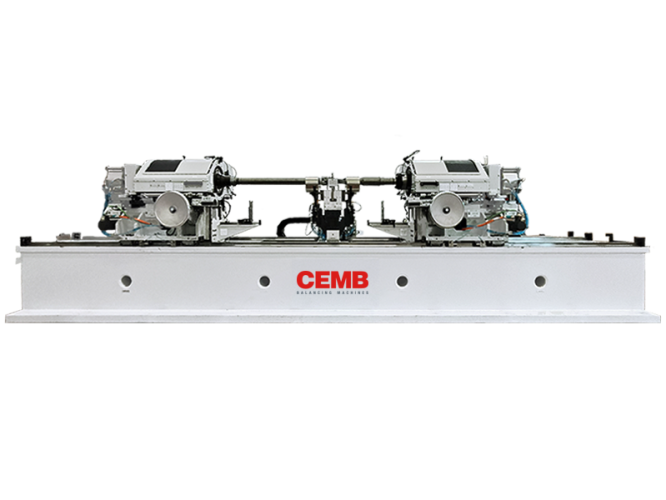

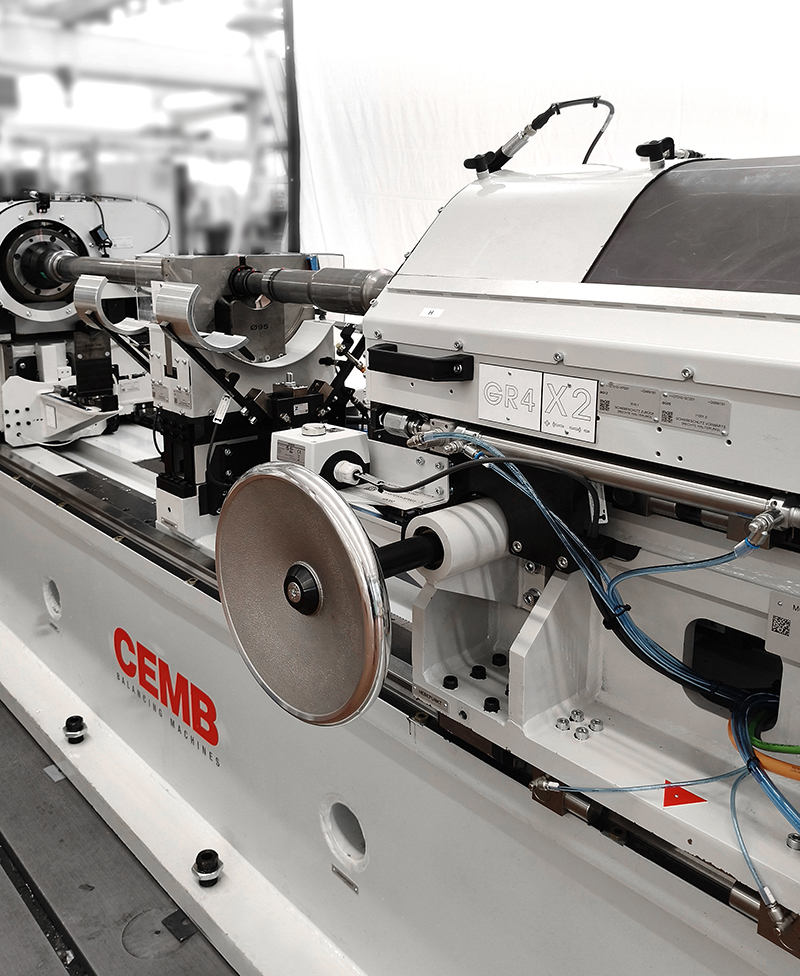

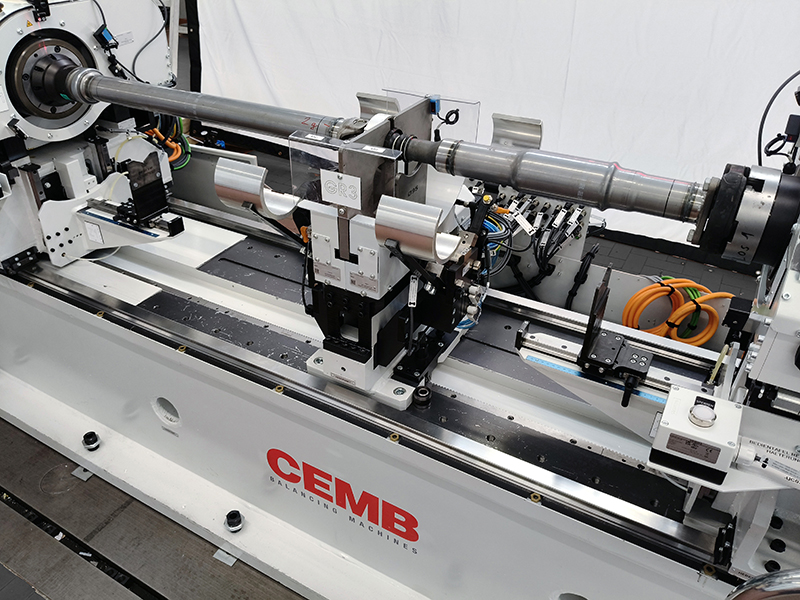

Automatic balancer for drive shafts
CEMB automatic balancer for drive shafts with automatic positioning for application of correction masses. High performance, low consumption and versatility for shafts up to 3 meters, with integration for robotic loading.
Features
Technical data
| ZBS20/G/GV/S | |
|---|---|
| Maximum rotor weight (kg) | 20 |
| Maximum rotor length (mm) | 3000 |
| Maximum rotor diameter (mm) | 100 |
| Machine capacity | 20 |
| ZBS20/G/GV/S |
