- Unbalance measurement suitable for high-speed rotating shafts, flexible behavior and minimal tolerance.

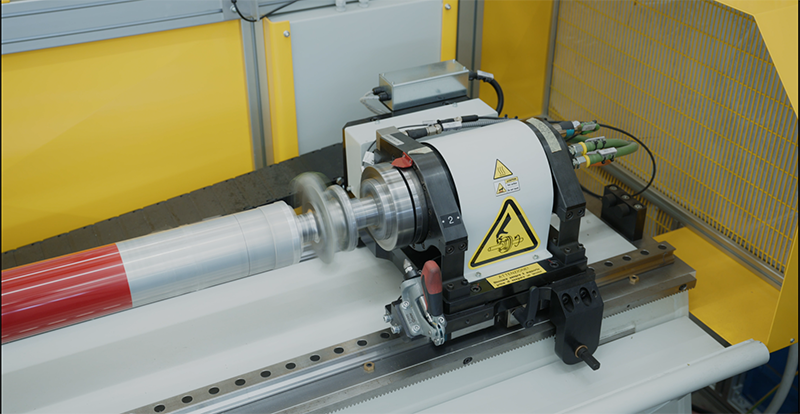

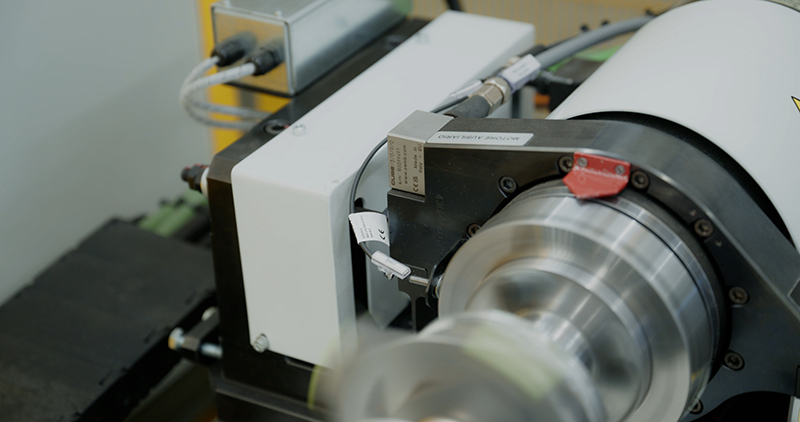

- Horizontal configuration with high-rigidity base and drive by electrospindles.
- Balancing speed up to 8000 rpm.
- Designed for OEM line and maintenance center (MRO) applications, with flexibility for new or remanufactured components.

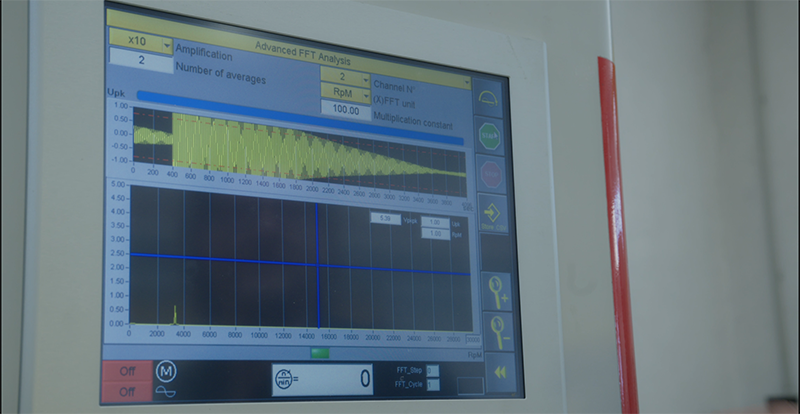

- Special software for hyper-critical and multi-story balancing.
- Complete protections including automatic for operator safety and comfort
- Compliance with aviation and defense industry requirements.

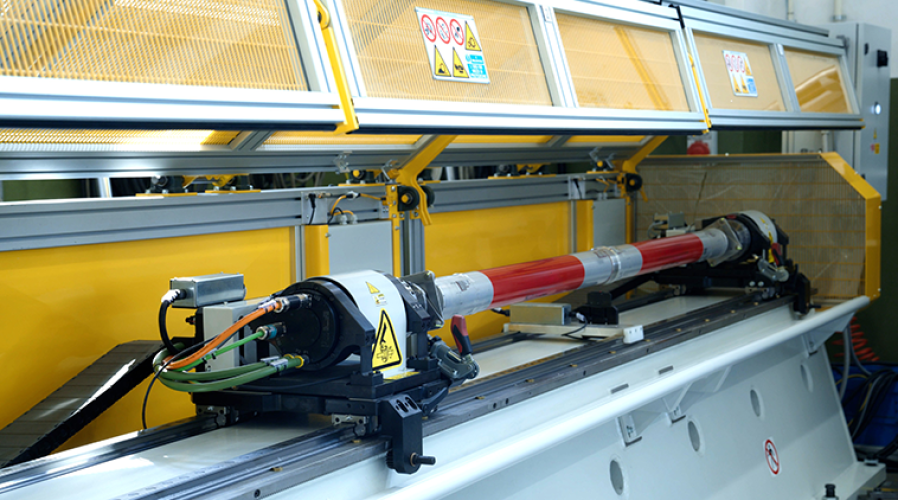

Helicopter drive shaft balancer
CEMB’s horizontal-axisbalancer for aircraft components conforms to SAE standards and is designed for OEM and MRO applications. Equipped with high-speed drive via electro-spindles, it ensures stability and accuracy with dedicated software for hyper-critical and multi-plane balancing .
Features
Technical data
| ZB20/MS/AERO/S | |
|---|---|
| Maximum rotor weight (kg-lb) | 20-44 |
| Maximum rotor diameter (mm-inches) | 220-8,66 |
| Maximum rotating length (mm-inches) | 4500-177,16 |
| Balancing speed (rpm) | 1000-8000 |
| Machine capacity | 20 |
| Electro-spindle drive | ZB20/MS/GV/AERO/S |
